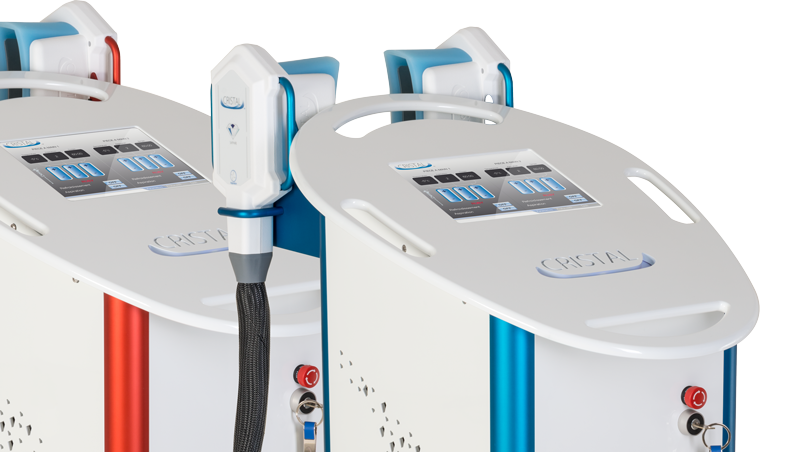

CRISTAL®

Medical Cryolipolysis

With CRISTAL® Cryolipolysis, non-invasive cooling of selected subcutaneous adipocytes (tissue made up of fat cells) becomes possible. The goal is to induce lipolysis (apoptosis), which is the decomposition of adipose tissue (fat cells) leading to the elimination of excessive local fat deposits and cellulite, without damaging any surrounding tissue. The cryolipolysis is a well-established treatment in the United States and is being studied extensively by leading scientists in dermatology and aesthetic medicine worldwide.

The goal of cryolipolysis is a cristallisation of adipose cells, which should start a self-destruction mode because of the cold temperature. The human body often times gently but permanently removes the crystallized fatty tissue during a few weeks after the treatment, leaving aesthetic and great-looking curves.



The innovative CRISTAL® works safely and efficiently, is non-invasive and requires no anesthesia. The machine is available with a variety of different applicators, each specifically designed to match all parts of the human body, on both males and females. After only six to eight weeks, the results are permanent and optimal.

  • 1. Apoptosis

  • 2. Decomposition of adipocyte cells

  • 3. Lipid elimination

The CRISTAL® is completely engineered and manufactured in France, ensuring the highest European standards and complying with all medical device directives. Deleo is ISO 13485:2003 & EN ISO 13485:2012 certified to ensure quality and traceability in every step of the process, from design to production to delivery to the client. A superb after-sales service at lightning speed is included with any sale.



CRISTAL® is regarded the standard in medical cryolipolysis equipment. Ask for references now!

8 control sensors & dermis pressure sensor for maximum patient safety

Designed & manufactured in France along highest European standards

7 hand pieces for safe and efficient treatment

2 years of warranty & enduring after-sales service

No running costs (license fees)

Medical technical device of class IIa (93/42 EEC)

Controlled cooling down to -9°C

2 applicators can be used simultaneously

Technology

Dual-powered, advanced cooling system

The CRISTAL® cryolipolysis device employs a dual-powered cooling system: the combination of a R134a gas cooler and a fan/radiator cooling ensure a quick descend to the pre-set temperature and maintain a stable cold temperature throughout the entire treatment. This medical innovation guarantees great results for your patients and a quick return-on-investment for your practice.



Intuitive, user-friendly software

The intuitive CRISTAL® Android-based software lets you program the device individually for your patients. 24 protocols are pre-provided, 2,000 more can be saved in the memory.



Maximum safety

The CRISTAL® has the most advanced safety features built-in to ensure maximum patient safety at all times:

  • 8 probes to control parameters
  • Automated and manual patient shutdown in case of emergency
  • Smartphone (iPhone & Android) app to monitor the treatment parameters remotely



No consumables – no license fees

To ensure maximum profitability for the doctor, no license fees are charged, no consumables required, besides pre-impregnated protection clothes.

Applicators

Emerald

Size: 130 x 38 x 72 mm

The Emerald is the ideal handpiece for the treatment of small rolls of fat, for instance below the arms and behind the knees. Available with curved or straight edges.

Sapphire

Size: 155 x 35 x 72 mm

The Sapphire is the most versatile handpiece and can be ideally used on many parts of the body, including the abdomen, bra-line and the “love handles”.

Ruby

Size: 200 x 38 x 74 mm

The Ruby handpiece was developed to treat large rolls of fat, it optimally fits on the abdominal area.

Amethyst

Size: 209 x 110 x 51 mm

The Amethyst handpiece has been specifically designed for the inner and outer thighs. It is completely versatile and deformable to adapt to all morphologies. The Amethyst is a Deleo innovation that was patented in the year 2015.

Agate

Sizes:
A1 – 45 x 25 x 32,5 mm – 440 g
A2 – 70 x 30 x 32,5 mm – 555 g
A3 – 90 x 30 x 45 mm – 760 g

The Agate applicator has been patented by Deleo in 2016 and is ideally suited to treat the double chin. It comes in a set with three different sizes and fits therefore to any of your client’s morphologies. It is also perfect to treat arms, knees, the bra fold and any other smaller treatment zones.

Studies & Certificates

EC CERTIFICATE – FULL QUALITY ASSURANCE SYSTEM

BSI
Directive 93/42/EEC on Medical Devices

CE 632901

Download Certificate

CERTIFICATE OF REGISTRATION – QUALITY MANAGEMENT SYSTEM

BSI
ISO 13485:2003 & EN ISO 13485:2012

Download Certificate



FAT REMOVAL USING A FRENCH CRYOLIPOLYSIS DEVICE: RETROSPECTIVE STUDY OF 418 TREATMENTS

Dr. Michael Naouri
Laser Centre – Nogent-sur-Marne
Centre Laser International de la Peau – Paris/France

Download Study

CRYOLIPOLYSIS FOR FAT REDUCTION AND BODY CONTOURING: SAFETY AND EFFICACY OF CURRENT TREATMENT PARADIGMS

Ingargiola MJ, Motakef S et al. (2015)

Download Study





CRYOLIPOLYSIS FOR NONINVASIVE BODY CONTOURING: CLINICAL EFFICACY AND PATIENT SATISFACTION

Krueger, Nils et al. (2014)

Download Study

THREE-DIMENSIONAL VOLUMETRIC QUANTIFICATION OF FAT LOSS FOLLOWING CRYOLIPOLYSIS

Garibyan, Lilit et al. (2014)

Download Study

Technical Data

Cooling system Dual cooling with R134a gas cooling
unit & radiator/fan cooling
4 Peltier cooling elements
Water / air
Cooling temperature 0°C / -9°C on skin surface
Applicators 2 outputs (useable at the same time)
Emerald
Size: 130 x 38 x 72 mm
Sapphire
Size: 155 x 35 x 72 mm
Ruby
Size: 200 x 38 x 74 mm
Amethyst
Size: 209 x 110 x 51 mm
Vacuum pressure system 0-68 kPa
4 adjustable vacuum pressure levels
Massage mode
Operating system Android v 4.3
Memory 24 pre-recorded protocols
memory for > 2,000 own protocols
Connection ports USB
Output power 1.200 W
Input power AC 200 – 220 V | 15A | 50/60 Hz
Size of the device 1.000 x 500 x 400 mm
Weight 53 kg
